Hersteller / Manufacturer
|
Dräger, Lübeck.
|
|
Name
|

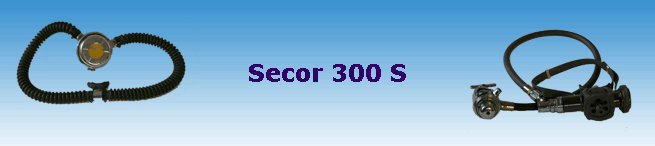

Secor 300 S
|
|
gebaut / built
|
1975 - ca. 1985
|
|
max. Luftlieferleistung / max.air delivery
|
1200 Nl /min.
|
|
Stages
|
2
|
|
|
|
|
Stage 1
|
downstream
|
|
Balanced?
|
balanced
|
|
Type
|
kolbengesteuert / piston activated
|
|
Mitteldruck / IP
|
7,5 bar
|
|
HP-Port
|
1 x M10x1
|
|
|
|
|
Stage 2
|
Downstream
|
|
Type
|
no
|
|
LP-Port
|
2 x R 1/8”
|
|
|
|
|
Gehäuse/Housing
|
Niro V4A Stahl
|
|
max Druck / Pressure
|
200 bar
|
|
Anschluss/Fitting
|
DIN / INT
|
|
|
|
|
Atemwiderstand / Breathing effort
|
4 - 5 mbar.
|
|
Gewicht / Weight
|
1254 g
|
|
Gesehen wo/Seen on
|
Submarin 6/79
Technik und Funktion der Atemregler
|
|
Special notice
|
Schlauchlänge 700 mm.
|
|
Techn. drawing
|
no
|
|
Service manual
|
no
|
|
|
