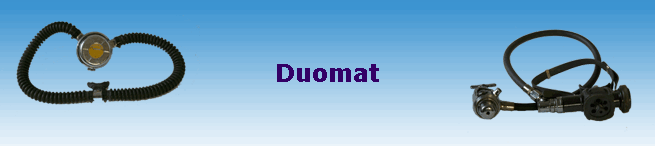

Duomat


	Nach oben/up


	[C-D] [Home]


	Gästebuch Guestbook


	Contact me


	Dieser Regler war das Highlight der Dräger Regler, manche Modelle sogar für 300 bar...


	This reg was the top model - some of them were usable till 300 bar...


Hersteller / Manufacturer	Dräger
Model	Duomat
gebaut / built	1972 - 1980+
max. Luftlieferleistung / max.air delivery	max. 260 l/min
Stages	2

Stage 1	Upstream
Balanced ?	no
Type	membrangesteuert / Diaphragm activated
Mitteldruck / IP	4,8 bar
HP-Port	no

Stage 2	Downstream
Type	no
LP-Port	no

Gehäuse/Housing	Metal
Membrane Ų / Diaphragm Ų	13 cm
max Druck / Pressure	200 bar, later ones 300 bar, INT 200 bar
Anschluss/Fitting	DIN 200, DIN 300 or INT
Luftauslass/ Exhaust	Entenschnabelventil / duckbill
Anschluss Gehäuse Ų/ Fitting Housing Ų	no Information by now
Mundstück/Mouthpiece	Einwegeventil Gummi / non-return rubber
Anschluss Mundstück Ų /Fitting Mouthpiece Ų	no Information by now
Gesehen wo/Seen on	My collection, Hubsi
Special notice	hose length 360mm, weight 1734 gr. resistance 4-5 mbar.
Techn. drawing	no
Service manual	no, but regular manual

Backside Duomat

Mouthpiece Duomat
